Inch deep groove balls are small-diameter and thin-walled bearings that are easy to achieve compact and lightweight design. 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635
Product Details
Inch deep groove balls are small-diameter and thin-walled bearings that are easy to achieve compact and lightweight design.
Features:
1. Small diameter standard bearing.
2. Inch size product.
3. The advantage lies in the variety.
Application:
Best for mechanical parts (fan motors, encoders, stepper motors, ATMs, etc.)
| Bearing Number | d mm/inch | D mm/inch | W mm/inch |
| 1601 | 4.763 .1875 | 17.463 .6875 | ★6.350 .2500 |
| 1602 | 6.350 .2500 | 17.463 .6875 | ★6.350 .2500 |
| 1603 | 7.938 .3125 | 22.225 .8750 | △7.144 .2812 |
| 1604 | 9.525 .3750 | 22.225 .8750 | △7.144 .2812 |
| 1605 | 7.938 .3125 | 23.019 .9062 | 7.938 .3125 |
| 1606 | 9.525 .3750 | 23.019 .9062 | 7.938 .3125 |
| 1607 | 11.113 .4375 | 23.019 .9062 | 7.938 .3125 |
| 1614 | 9.525 .3750 | 28.575 1.1250 | 9.525 .3750 |
| 1615 | 11.113 .4375 | 28.575 1.1250 | 9.525 .3750 |
| 1616 | 12.700 .5000 | 28.575 1.1250 | 9.525 .3750 |
| 1620 | 11.113 .4375 | 34.925 1.3750 | 11.113 .4375 |
| 1621 | 12.700 .5000 | 34.925 1.3750 | 11.113 .4375 |
| 1622 | 14.288 .5625 | 34.925 1.3750 | 11.113 .4375 |
| 1623 | 15.875 .6250 | 34.925 1.3750 | 11.113 .4375 |
| 1628 | 15.875 .6250 | 41.2751.6250 | 12.700 .5000 |
| 1630 | 19.050 .7500 | 41.2751.6250 | 12.700 .5000 |
| 1633 | 15.875 .6250 | 44.4501.7500 | 12.700 .5000 |
| 1635 | 19.050 .7500 | 44.4501.7500 | 12.700 .5000 |

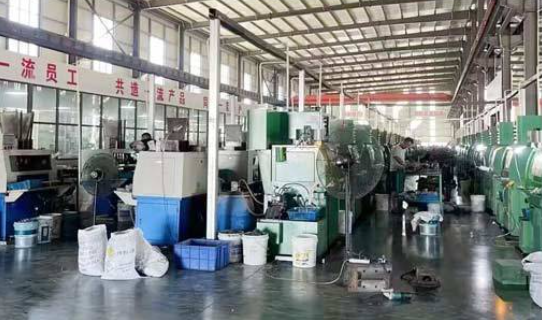

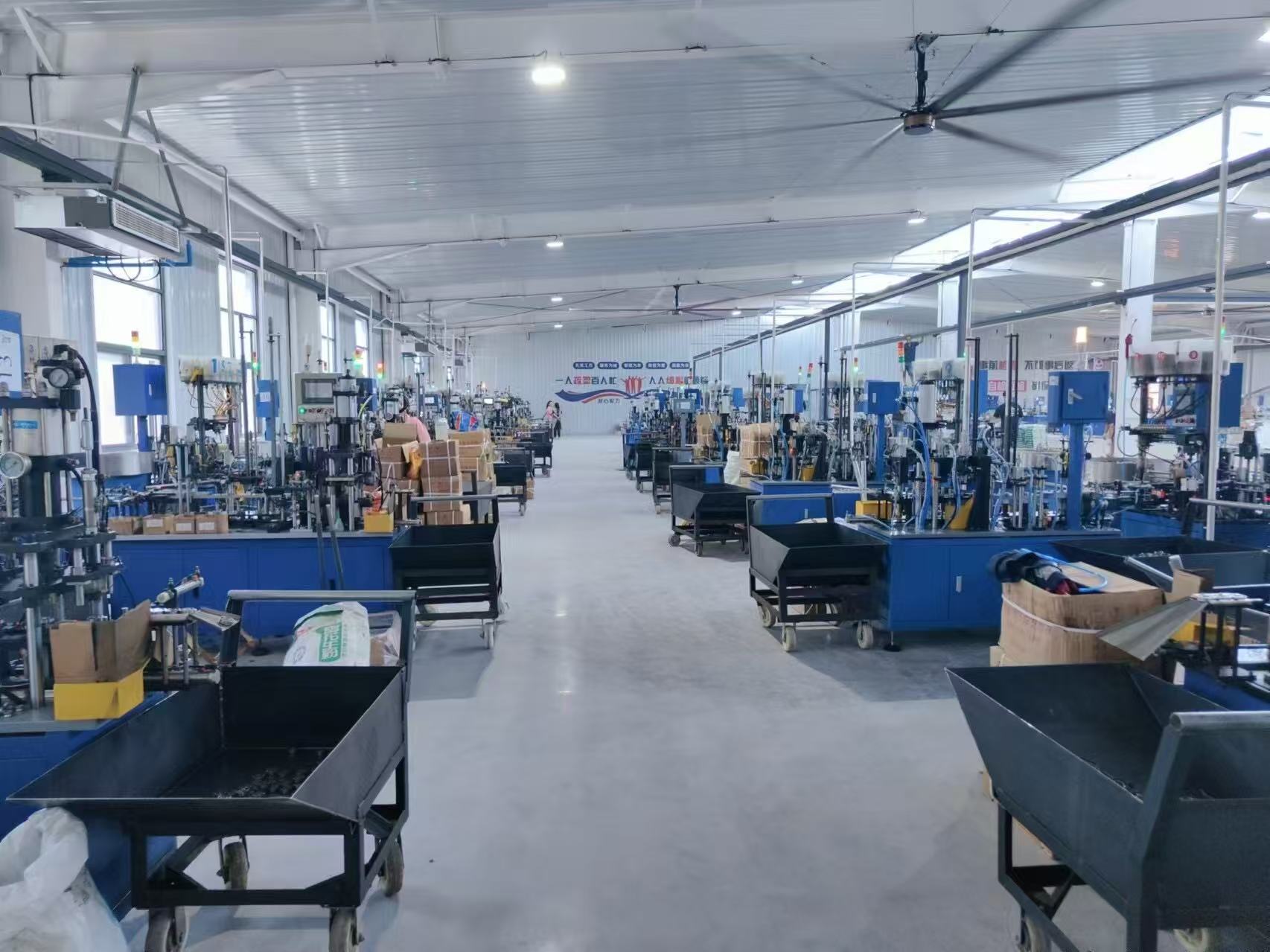

Factory Appearance

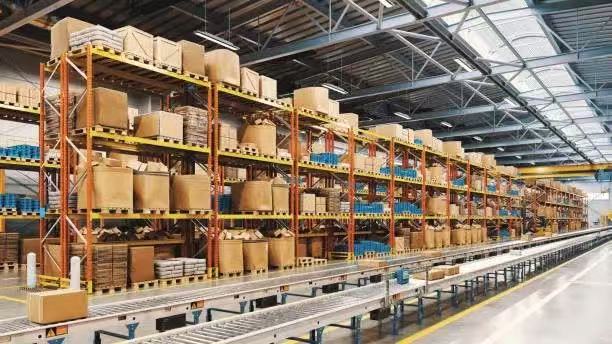

Packing and Shipping
As a company with many years of foreign trade experience, our products are exported to all over the world. We are known for our high quality and reliability, and have won unanimous praise and trust from our customers.
