Thin-walled deep groove ball bearings have a simple structure and are easy to use. 6800 6801 6802 6803 6804 6805 6806 6807 6808 6809 6810 6811 6812 6813 6814 6815 6816 6817 6818 6819 6820 6821 6822 6824 6826
Thin-walled deep groove ball bearings have a simple structure and are easy to use. It is mainly used to bear radial load, and can also bear radial load and axial combined load at the same time. This series of bearings is suitable for places where the load and assembly shaft are relatively large and the space is restricted.
Application：
Thin-walled deep groove ball bearings are widely used in automobiles, tractors, machine tools, motors, water pumps, agricultural machinery, textile machinery, etc.
| Bearing Number | d mm | D mm | B(mm) |
| 6800 | 10 | 19 | 5 |
| 6801 | 12 | 21 | 5 |
| 6802 | 15 | 24 | 5 |
| 6803 | 17 | 26 | 5 |
| 6804 | 20 | 32 | 7 |
| 6805 | 25 | 37 | 7 |
| 6806 | 30 | 42 | 7 |
| 6807 | 35 | 47 | 7 |
| 6808 | 40 | 52 | 7 |
| 6809 | 45 | 58 | 7 |
| 6810 | 50 | 65 | 7 |
| 6811 | 55 | 72 | 9 |
| 6812 | 60 | 78 | 10 |
| 6813 | 65 | 85 | 10 |
| 6814 | 70 | 90 | 10 |
| 6815 | 75 | 95 | 10 |
| 6816 | 80 | 100 | 10 |
| 6817 | 85 | 110 | 13 |
| 6818 | 90 | 115 | 13 |
| 6819 | 95 | 120 | 13 |
| 6820 | 100 | 125 | 13 |
| 6821 | 105 | 130 | 13 |
| 6822 | 110 | 140 | 16 |
| 6824 | 120 | 150 | 16 |
| 6826 | 130 | 165 | 18 |

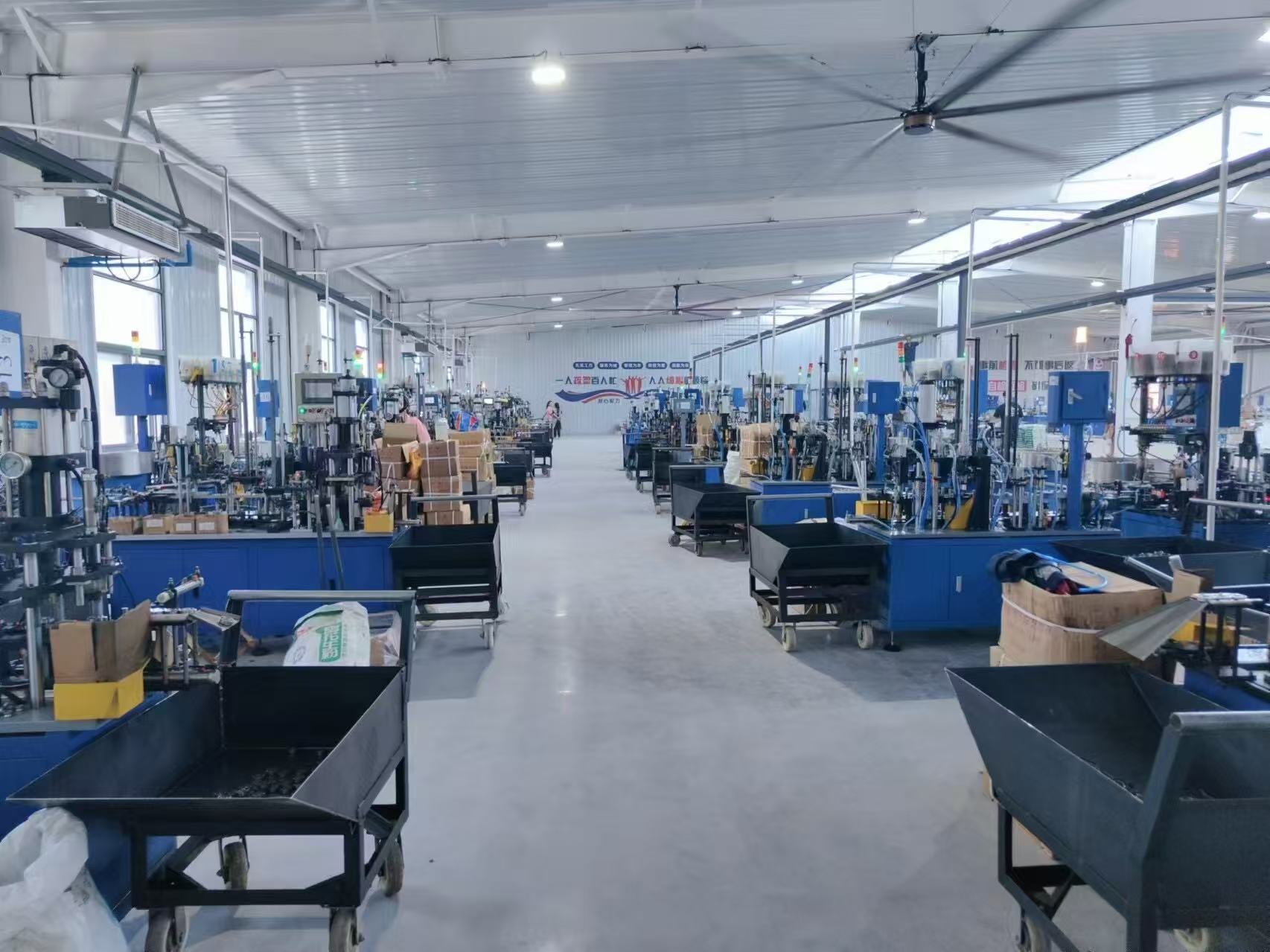

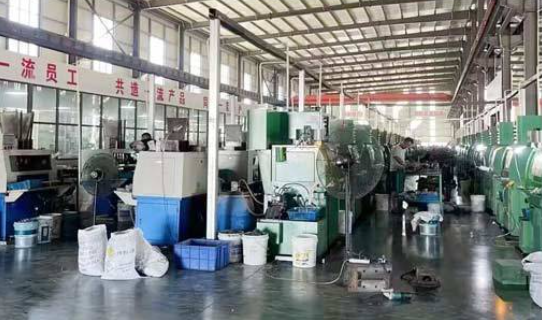

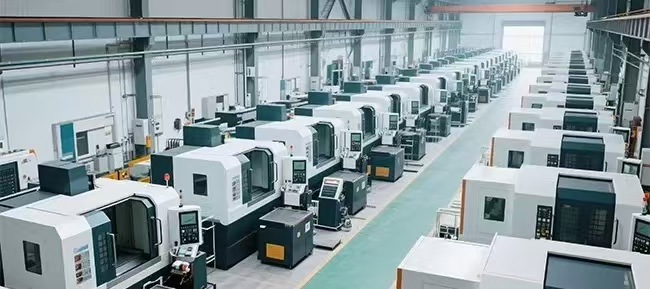

Factory Appearance

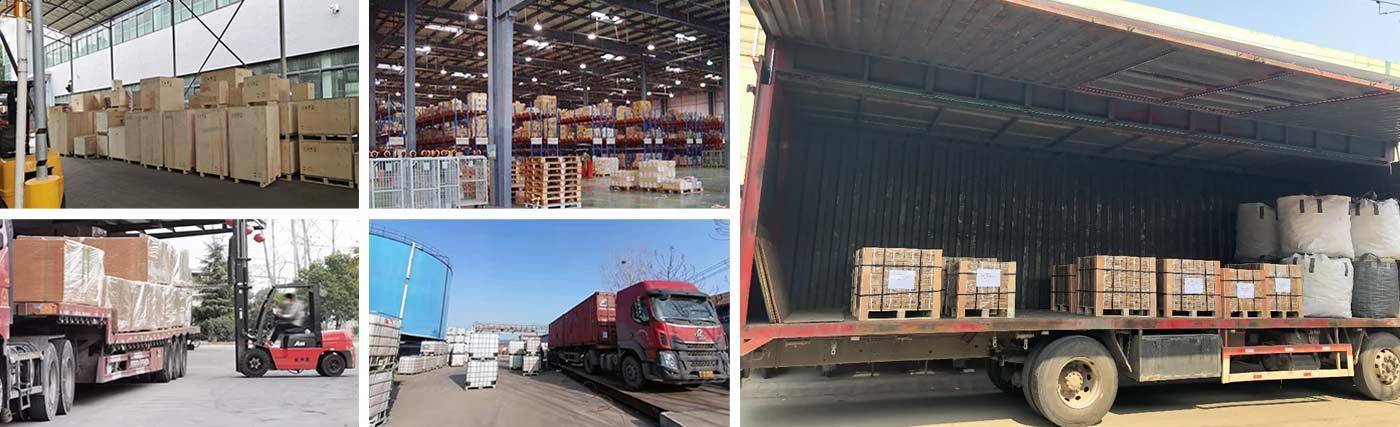

Packing and Shipping
As a company with many years of foreign trade experience, our products are exported to all over the world. We are known for our high quality and reliability, and have won unanimous praise and trust from our customers.
