Single row deep groove ball bearing housings are the most widely used bearing types: 6300 6301 6302 6303 6304 6305 6306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 6330 6332 6334 6336 6338 6340
Product Details
Single row deep groove ball bearing housings are the most widely used bearing types:
1. Basic design of open bearing
2. Sealed bearings
3. ICOS oil-sealed bearing unit
4. Bearings with snap grooves, with or without snap rings
Other deep groove ball bearings for special applications:
1. Hybrid ceramic bearings
2. Electrically insulated bearings
3. High temperature bearing
4. Solid oil bearing
5. Sensor bearing
| Bearing Number | d mm | D mm | H mm |
| 6300 | 10 | 35 | 11 |
| 6301 | 12 | 37 | 12 |
| 6302 | 15 | 42 | 13 |
| 6303 | 17 | 47 | 14 |
| 6304 | 20 | 52 | 15 |
| 6305 | 25 | 62 | 17 |
| 6306 | 30 | 72 | 19 |
| 6307 | 35 | 80 | 21 |
| 6308 | 40 | 90 | 23 |
| 6309 | 45 | 100 | 25 |
| 6310 | 50 | 110 | 27 |
| 6311 | 55 | 120 | 29 |
| 6312 | 60 | 130 | 31 |
| 6313 | 65 | 140 | 33 |
| 6314 | 70 | 150 | 35 |
| 6315 | 75 | 160 | 37 |
| 6316 | 80 | 170 | 39 |
| 6317 | 85 | 180 | 41 |
| 6318 | 90 | 190 | 43 |
| 6319 | 95 | 200 | 45 |
| 6320 | 100 | 215 | 47 |
| 6321 | 105 | 225 | 49 |
| 6322 | 110 | 240 | 50 |
| 6324 | 120 | 260 | 55 |
| 6326 | 130 | 260 | 58 |
| 6328 | 140 | 300 | 62 |
| 6330 | 150 | 320 | 65 |
| 6332 | 160 | 344 | 68 |
| 6334 | 170 | 360 | 72 |
| 6336 | 180 | 380 | 75 |
| 6338 | 190 | 400 | 78 |
| 6340 | 200 | 420 | 80 |

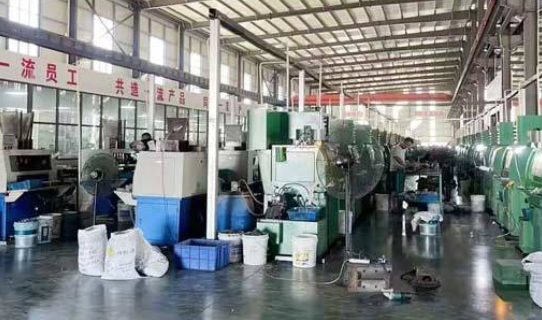

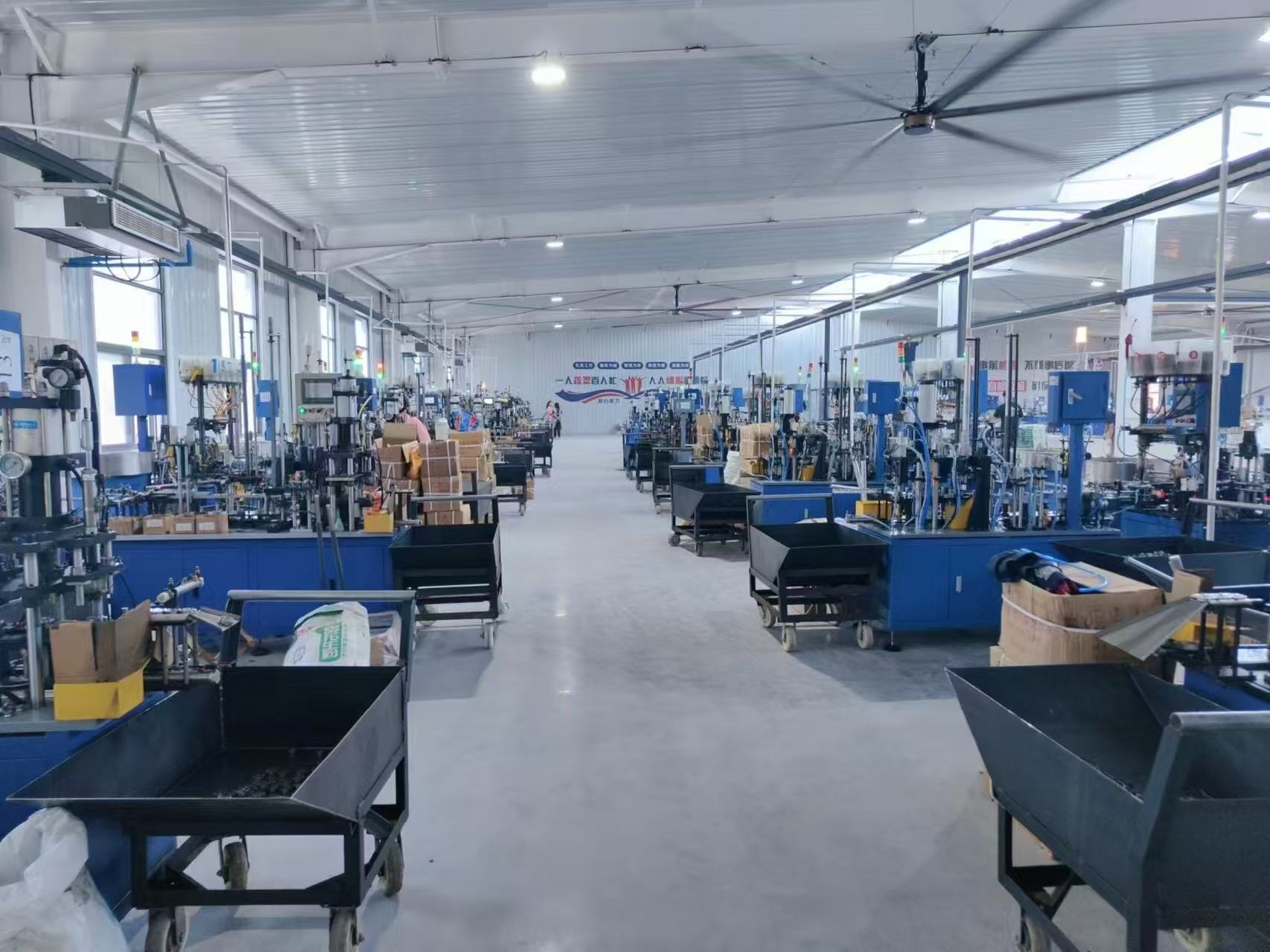

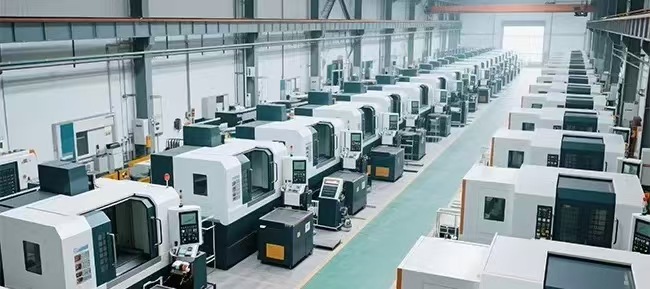

Factory Appearance
Packing and Shipping
As a company with many years of foreign trade experience, our products are exported to all over the world. We are known for our high quality and reliability, and have won unanimous praise and trust from our customers.
